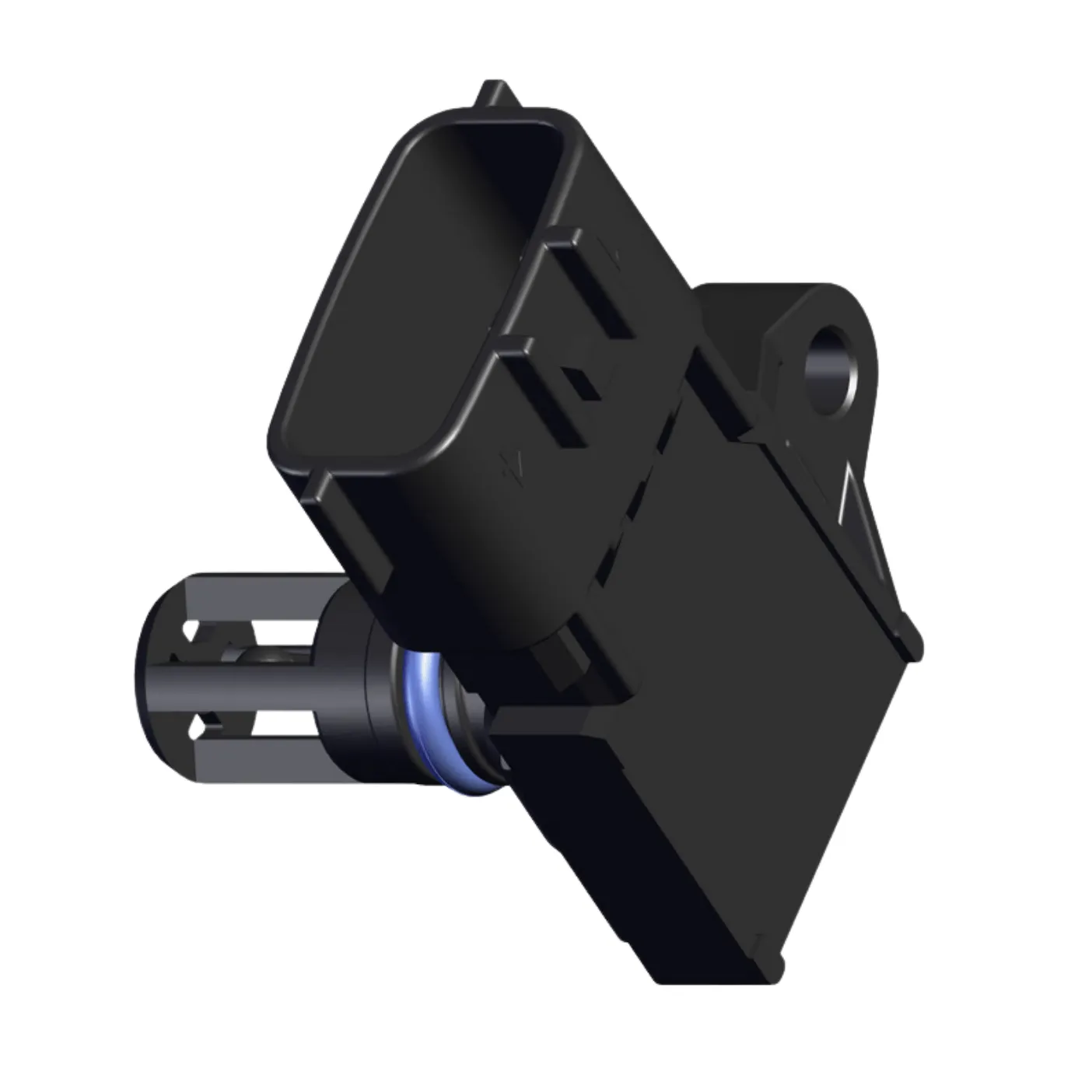

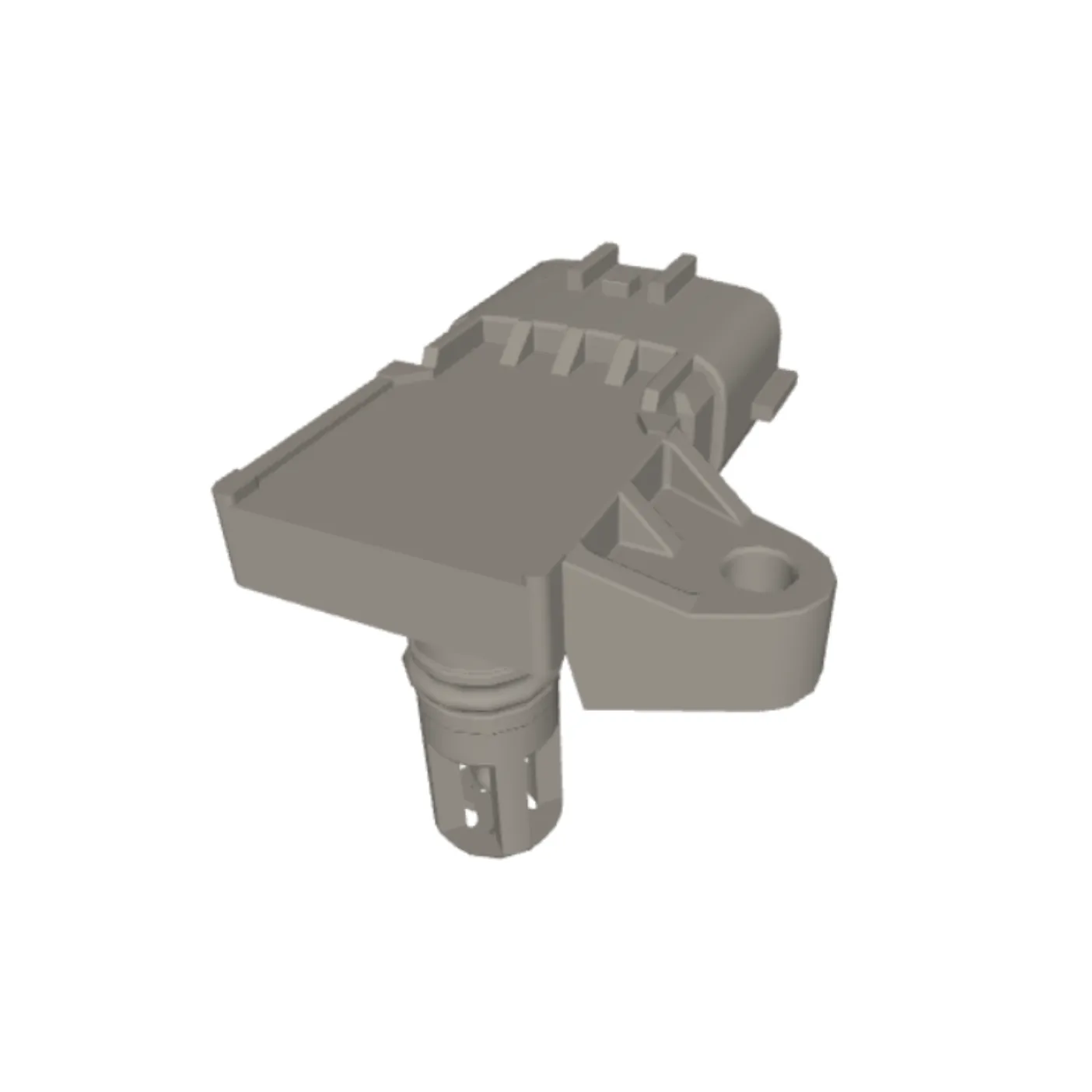

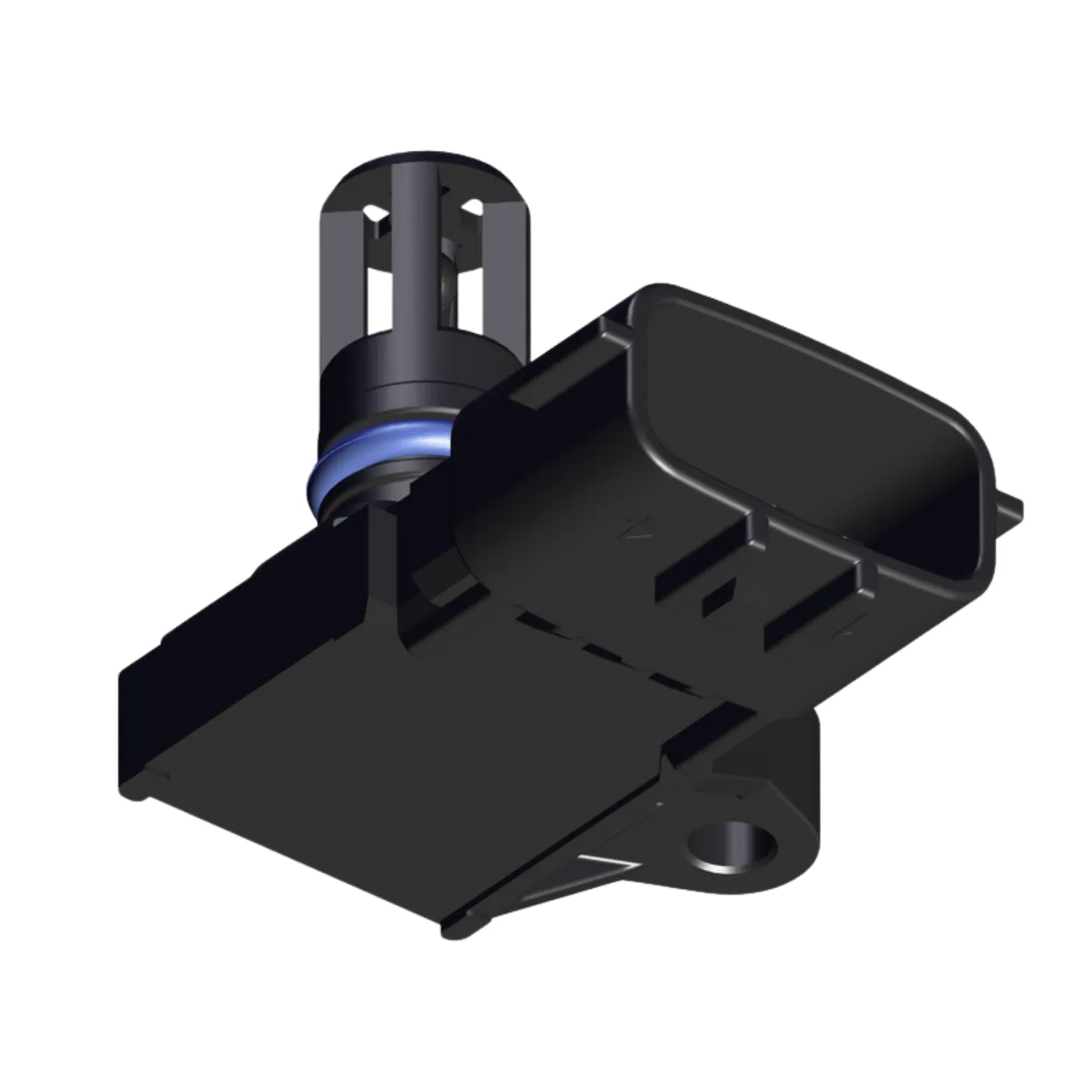

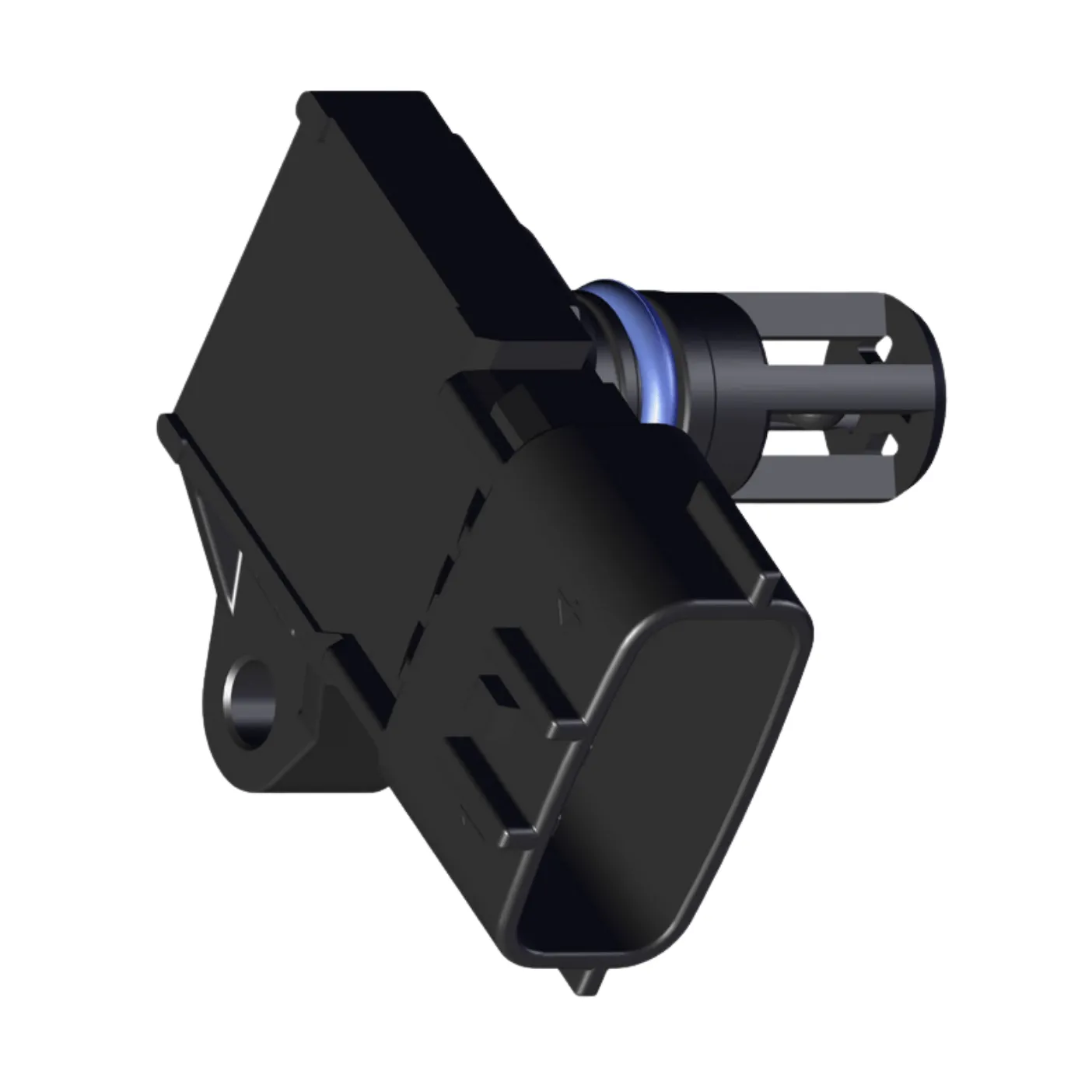

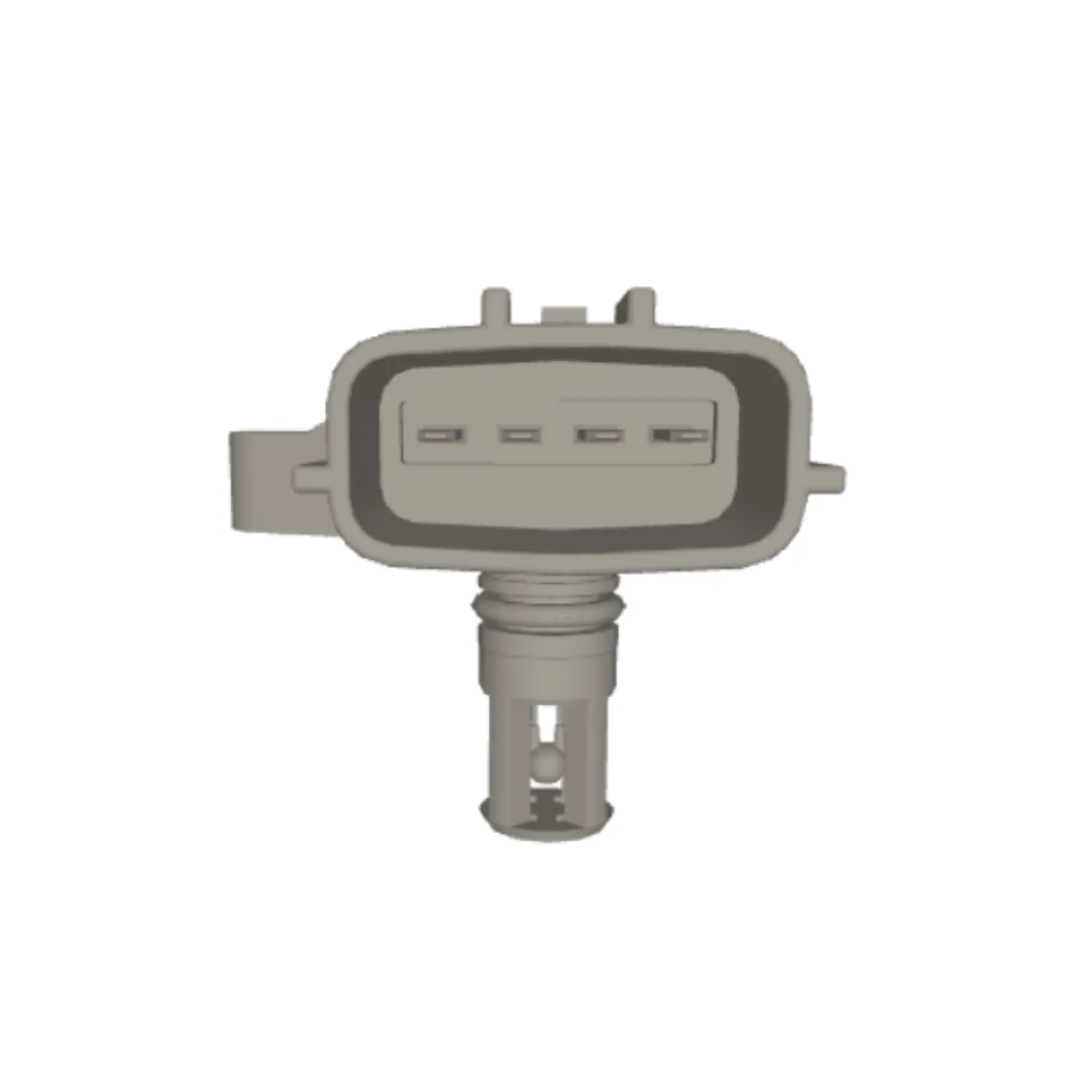

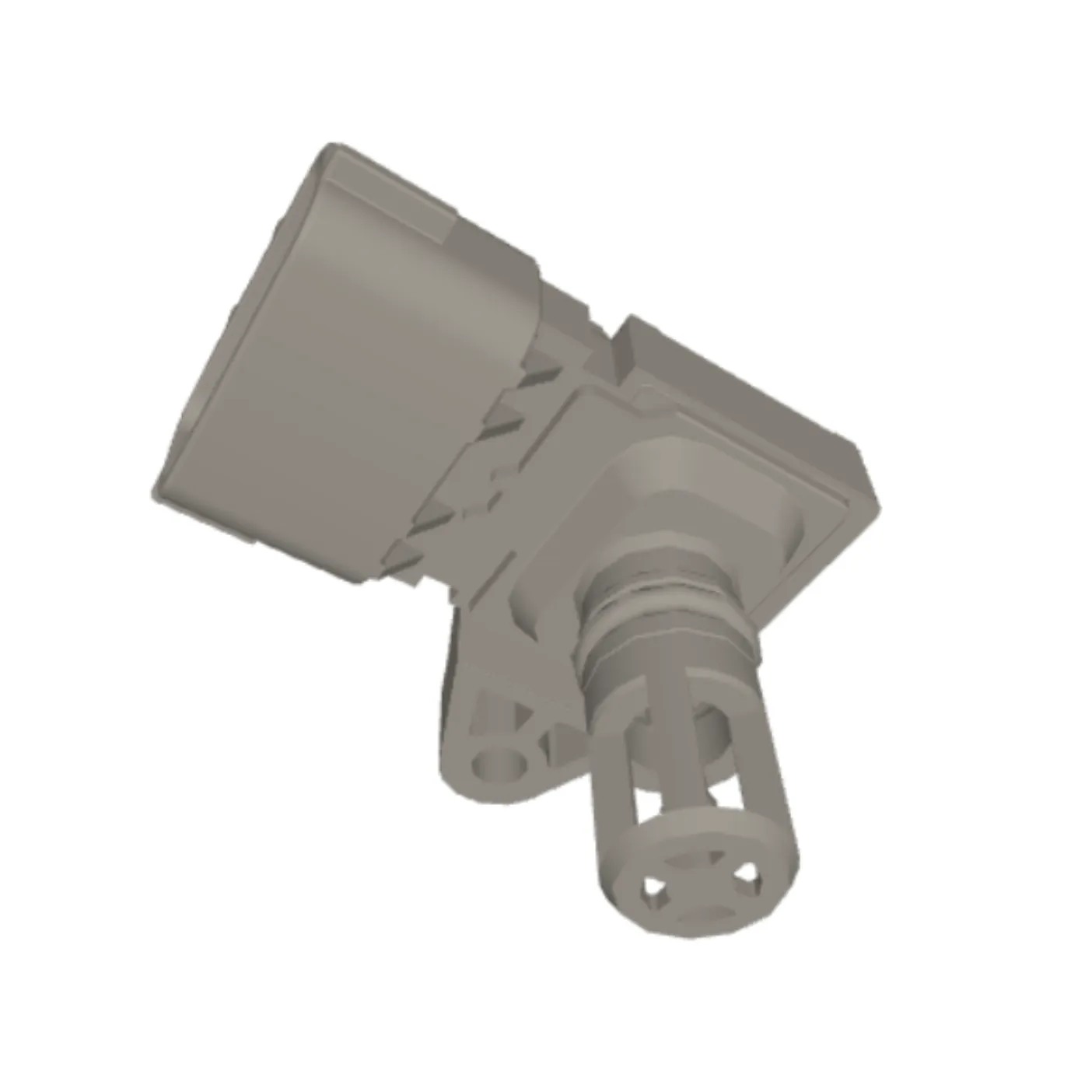

OEM Cummins Pressure Temperature Sensor

Your Cummins turbo diesel engine uses an intake air temperature sensor to determine changes in the intake air stream. The pressure changes are used to indicate engine load, boost, operational elevation, and other pressure variables that enable your ECU to make necessary changes so your diesel can run at peak performance. This part is in stock and ready for immediate shipment.

 The OEM Cummins Replacement Air Intake Sensor applications:

• Cummins B6.7 CM2350 B121B
• Cummins B6.7 CM2450 B155B
• Cummins ISB6.7 CM2150 (EPA 2007)
• Cummins SB6.7 CM2250 (EPA 2010)
• Cummins ISB6.7 CM2350 B101
• Cummins ISC CM2150
• Cummins ISC CM2250
• Cummins ISL CM2150
• Cummins ISL CM2250
• Cummins ISL CM2350 L101
• Cummins ISM CM876
• Cummins ISX11.9/12 CM2250
• Cummins ISX12 CM2350 X102
• Cummins ISX15 CM2250
• Cummins ISX15 CM2350 X101
• Cummins ISX15 CM871
• Cummins L9 CM2350 L116B
• Cummins L9 CM2350 L119B
• Cummins L9 CM2450 L126B
• Cummins QSB6.7 CM2250
• Cummins QSB6.7 CM2350 B105
• Cummins QSF3.8 CM2350 F107
• Cummins QSL9 CM2250
• Cummins QSL9 CM2350 L102
• Cummins QSX15 CM2250
• Cummins QSX15 CM2350 X105
• Cummins X12 CM2350 X119B
• Cummins X12 CM2450 X137B
• Cummins X15 CM2350 X114B
• Cummins X15 CM2350 X116B
• Cummins X15 CM2450 X124B
  Cummins X15 CM2450 X134B
• All 2019 Ram 2500, 3500, 4500, 5500 trucks with the 6.7L Cummins ISB.
• All 2020 Ram 2500, 3500, 4500, 5500 trucks with the 6.7L Cummins ISB.

• All 2021 Ram 2500, 3500, 4500, 5500 trucks with the 6.7L Cummins ISB.

• All 2022 Ram 2500, 3500, 4500, 5500 trucks with the 6.7L Cummins ISB.

• All 2023 Ram 2500, 3500, 4500, 5500 trucks with the 6.7L Cummins ISB.

• All 2024 Ram 2500, 3500, 4500, 5500 trucks with the 6.7L Cummins ISB.

If your Cummins Turbo Diesel engine is experiencing decreased engine performance, it could be the Pressure Temperature Sensor. There are multiple sensors on the intake air stream of the Cummins diesel engines. Please ensure that you have purchased the correct part for your Cummins engine. If you have any questions please  with your ESN - Engine Serial Number prior to making a purchase on a Non Returnable electrical component.

What are the symptoms of a Failing Pressure Temperature Sensor in your Cummins engine?

• Fault Codes 125, 222, 743, 2191, 2973, 1664, 5989
• Low power
• White smoke
• Engine misfire
• Emissions After-treatment performance complaints

In the 6.7L Cummins ISB engine this is a the direct replacement Intake manifold mounted factory Cummins replacement MAP sensor for the 2019 to 2024 Ram trucks with the 6.7L Cummins.

OEM Cummins 5698456 Air Pressure Temperature Sensor Cross References:

• Cummins 4921324
• Cummins 2872784
• Cummins 2897334
• Cummins 2897334NX

• Engine: Cummins B6.7 | Cummins ISB6.7 | Cummins ISC | Cummins ISL | Cummins ISM | Cummins ISX11 | Cummins ISX12 | Cummins ISX15 | Cummins L9 | Cummins QSB6.7 | Cummins QSF3.8 | Cummins QSL9 | Cummins QSX15 | Cummins X12 | Cummins X15

• Item Number: Cummins 5698456
• Sensor Type: Pressure Temperature Sensor
• Make : Dodge | Ram
• Model : 2500 | 3500 | 4500 | 5500
• Year : 2007.5 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 | 2014 | 2015 | 2016 | 2017 | 2018
• Manufacturer Part No: Mopar 68447683AA
• Product Application: On the 2019 to 2024 Ram 2500, 3500, 4500, and 5500 series trucks with the 6.7L Cummins Diesel engine this referred to as a MAP Sensor. .
• Height: 4
• Width : 5
• Brand : Mopar
• FAQ :
• Part Number : 5698456
• Manufacturer: Cummins
• Product Note: This Cummins 5698456Mopar 68447683AA Dodge Ram 6.7L Cummins Intake Air Temp Sensor / IAT sensor measures the temperature of the air charge in the intake manifold. The Engine Control Module uses the data taken by the IAT sensor to set fuel injection timing and adjust the air-fuel ratio. Diesel engine performance can be greatly diminished if this sensor is malfunctioning.
