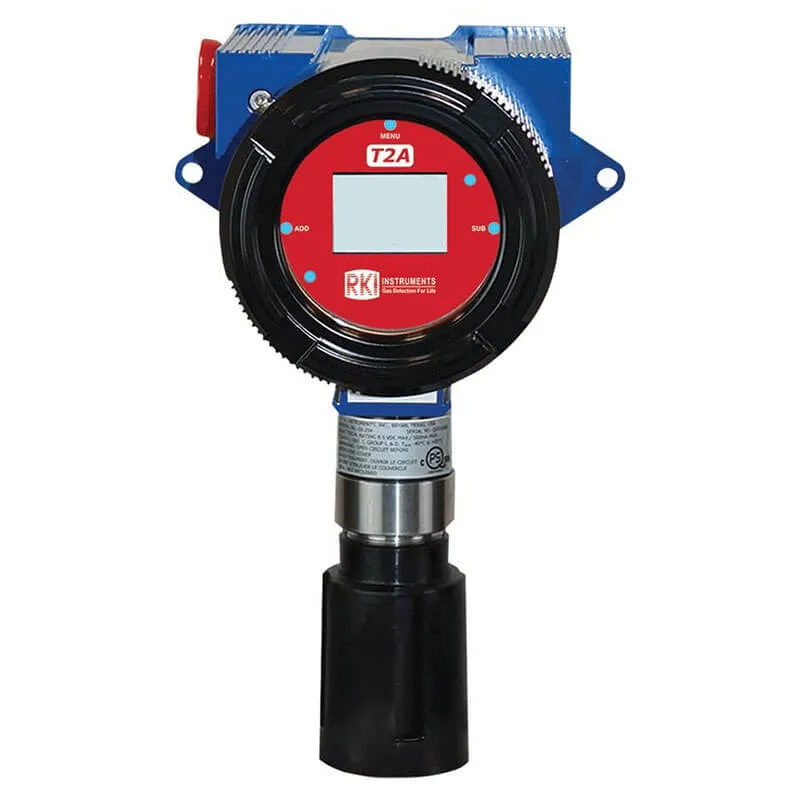

RKI T2A Sensor/Transmitter with J-Box is a HF gas detector. It is a versatile assembly that uses an electrochemical sensor to detect Hydrogen Fluoride. 2-Wire Loop-Powered to withstand extreme climatic conditions and harsh environments. Magnetic switches allow for non-intrusive calibration while in the field.

Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.

Designed to work with all RKI Beacon controllers, as well as most DCS / PLC systems: , , , or Controllers.

Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Manufacturing facilities, Automotive, Semiconductor plants, Chemical plants

>

Key Features:

• Hydrogen Fluoride (HF), 0-10 ppm
• Electrochemical Sensor
• Loop-Powered (2-Wired), 4-20 mA output
• 3 Character, 7 segment display screen with backlight
• 3 Push-button interface (ADD, MENU, SUB) with corresponding magnetic, non-intrusive switches
• Operating temperature range -40° C to 60°C
• Aluminum device enclosure
• 303 Stainless-steel sensor housing
• Patented water repellent sensor cover
• 1-Year warranty

Specification Sheet:

Manual:

Part Number:
66-6214-10 - 0-10 ppm
