Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Accessory Type | Standard In-Line Plug |
| Alternate Mfr Part Number | XQ-563-RS |
| Color | Yellow |
| Connector Size | Standard |
| Connector Type | Solid Pin |
| For Use With | K Type Thermocouple |
| Housing Color | Yellow |
| Maximum Operating Temperature | 220 °C |
| Minimum Operating Temperature | -35°C |
| Operating Temperature, Maximum | 220 °C |
| Operating Temperature, Minimum | -35°C |
| Shop By | Factory Choice |
| Standards | ANSI |
| Thermocouple Type | K |
| UPC Code | 5056112132011 |
Overview

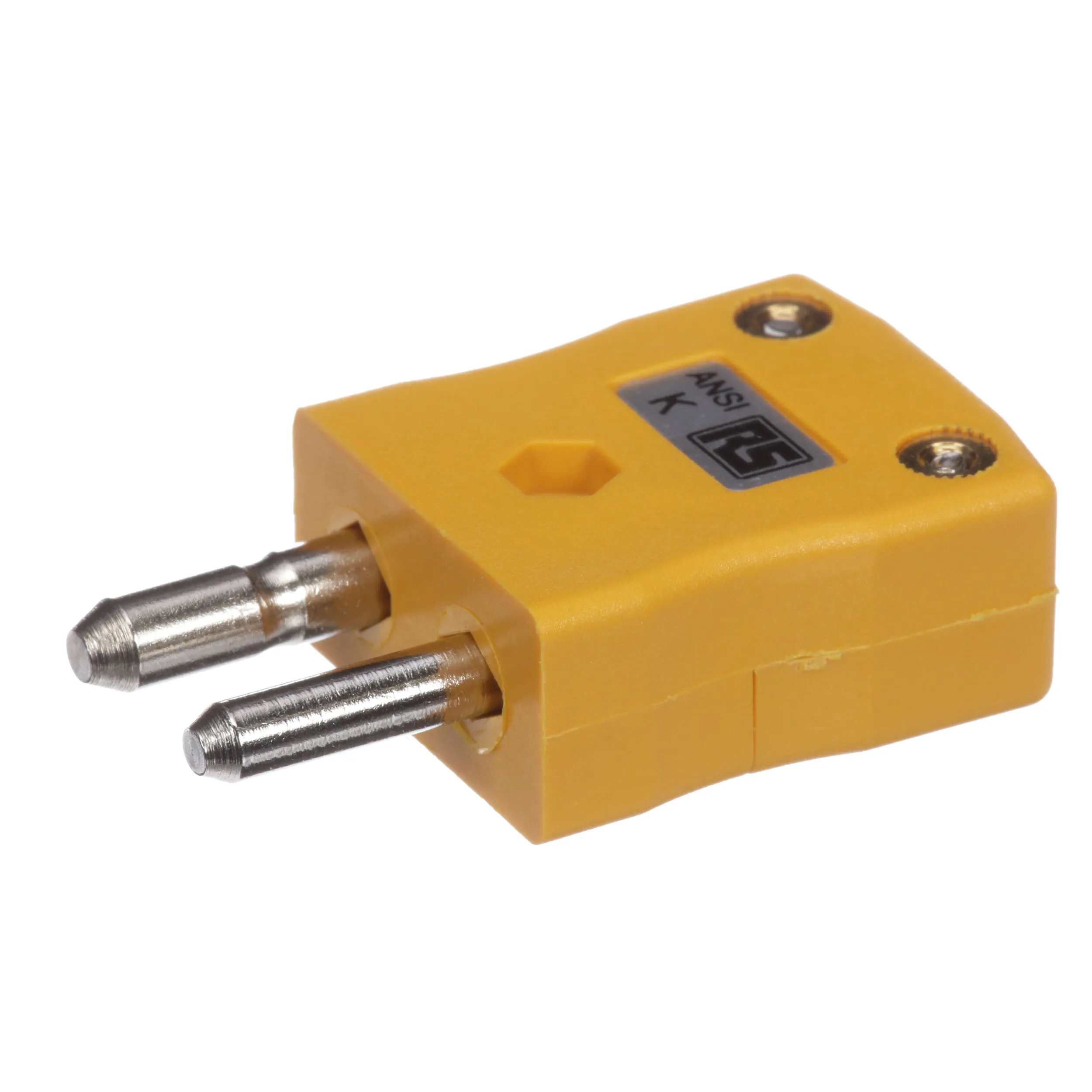

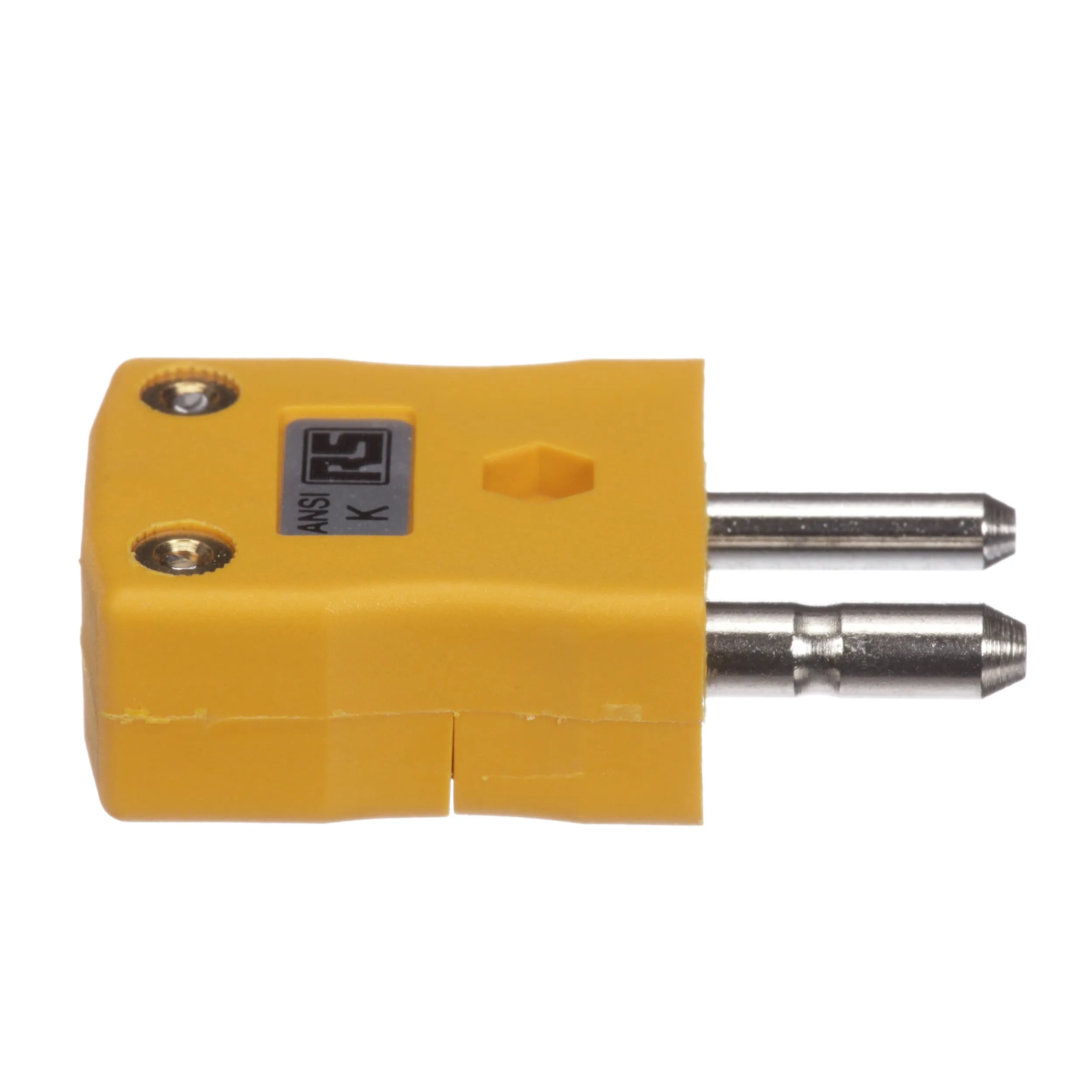

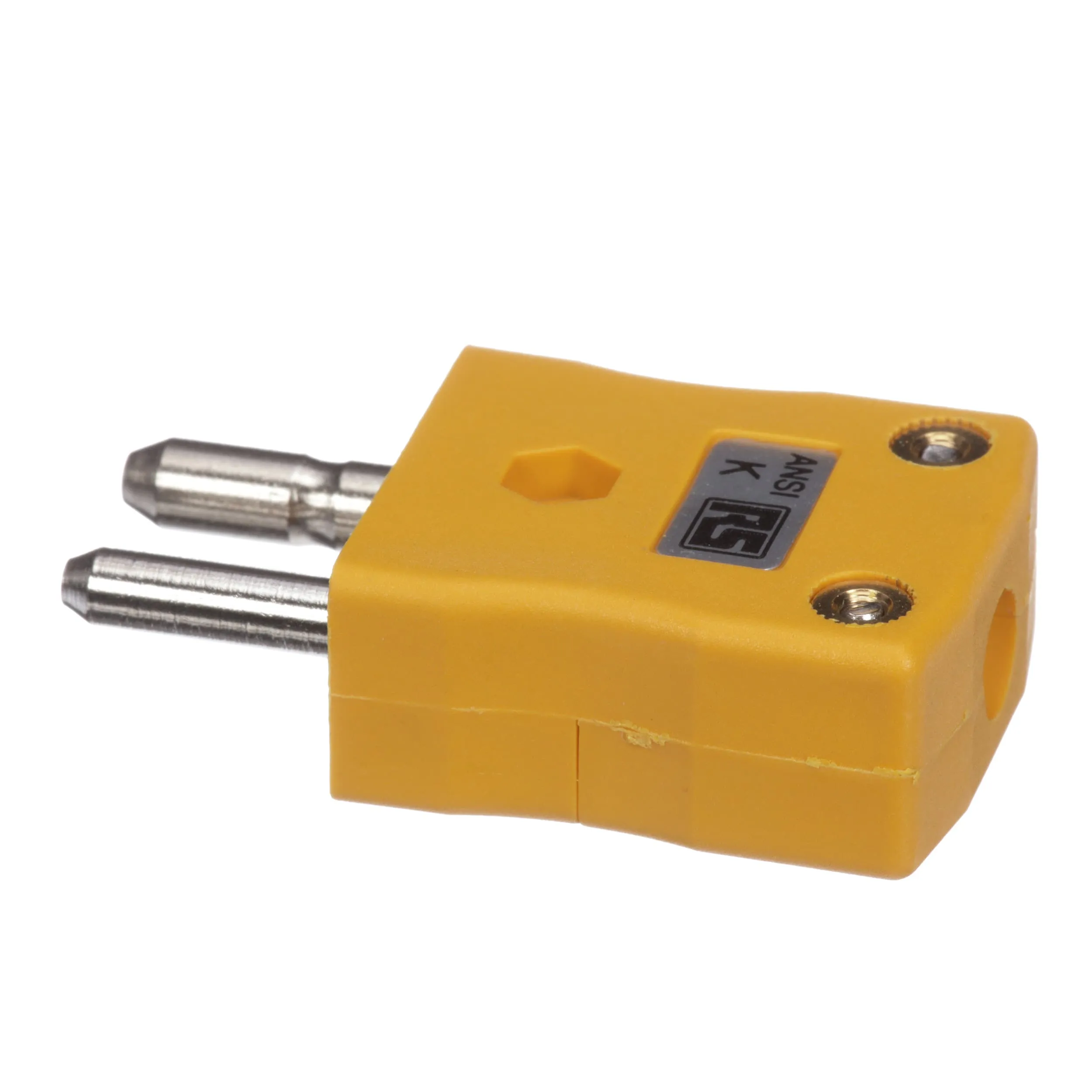

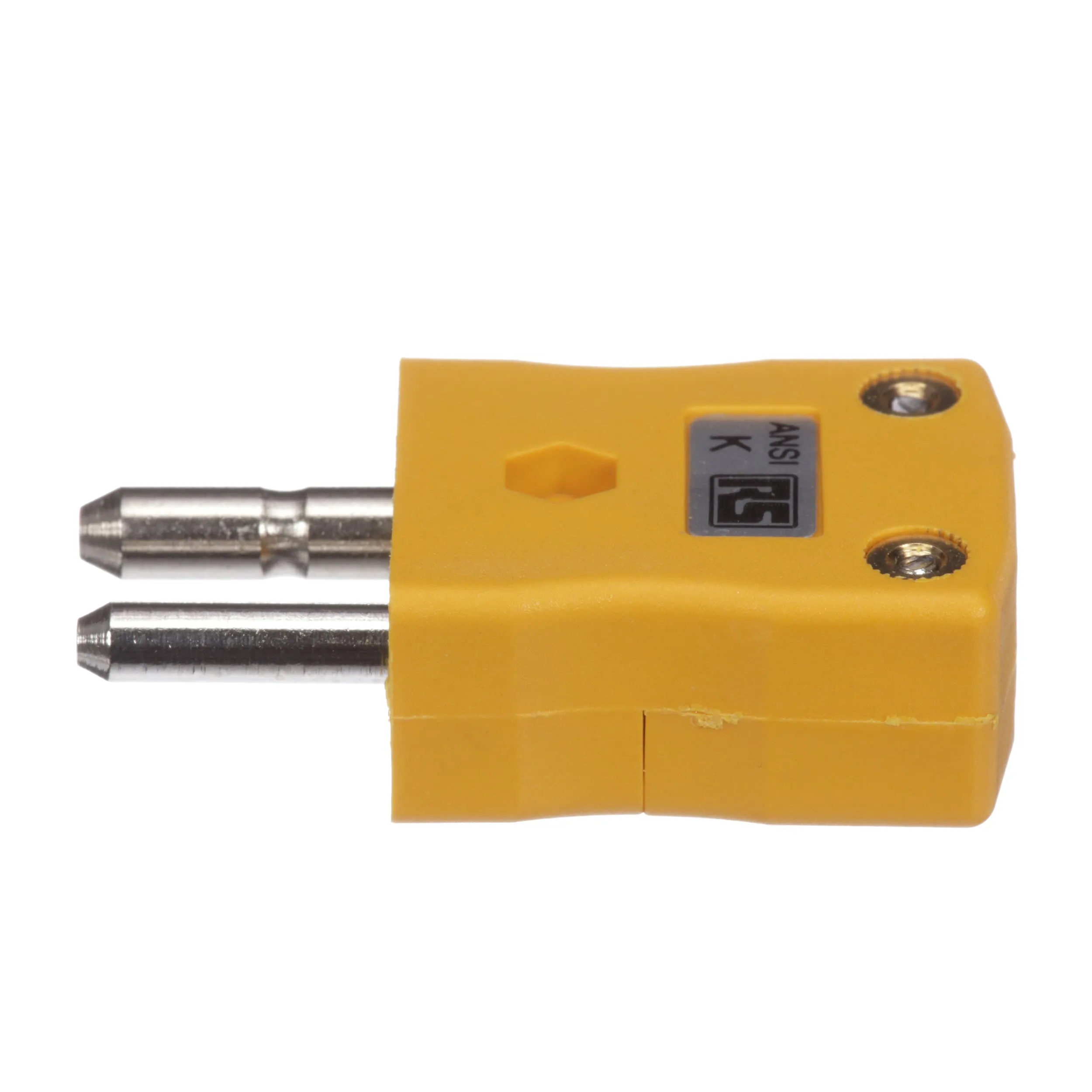

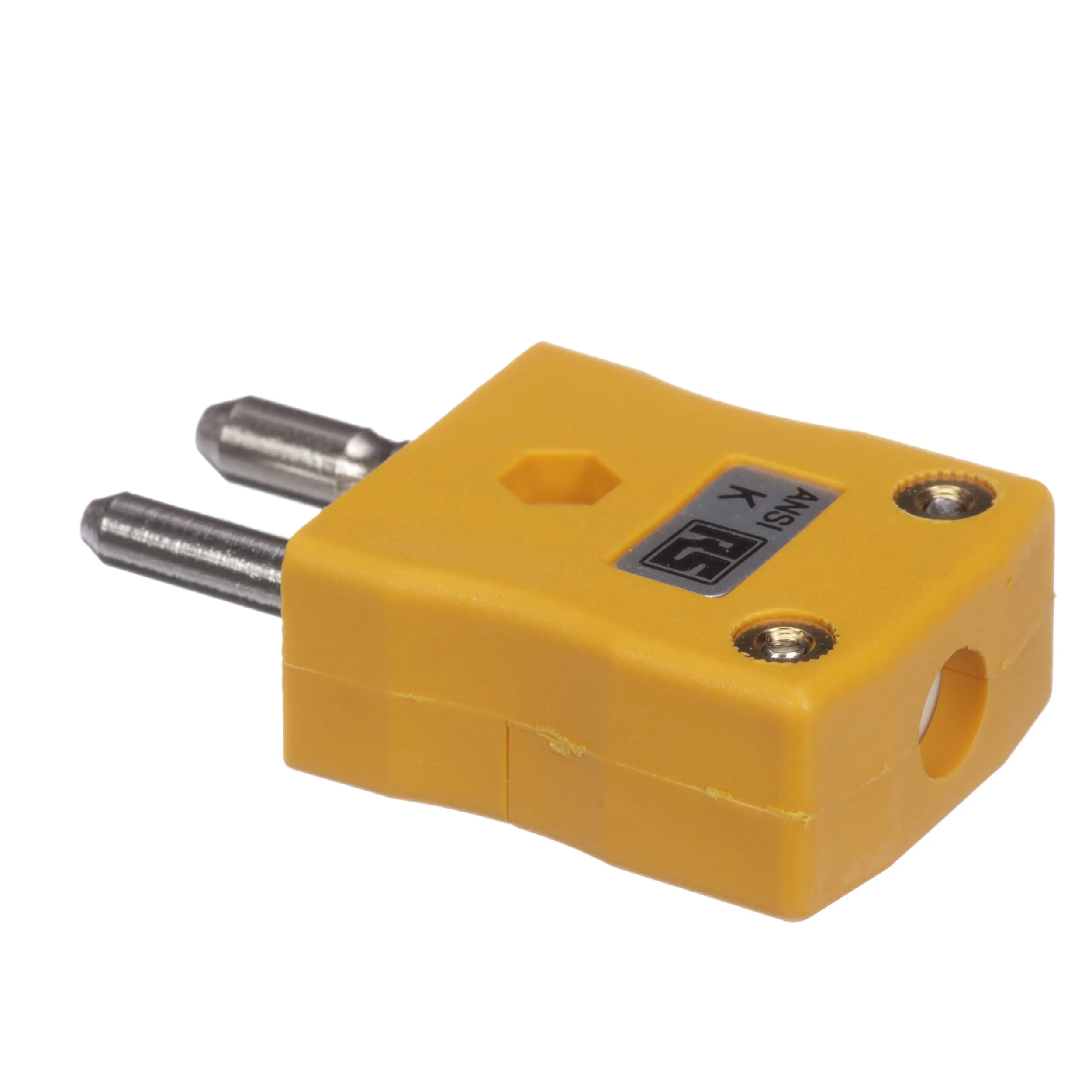

Standard In-Line Thermocouple Plugs
Standard in line connectors with solid, round plug pins available in thermocouple types K, J, T, E, N, R/S and B. These standard thermocouple plugs are suitable for many industrial applications.
Contacts are polarised to prevent incorrect connection
Color coded in accordance with ANSI specification
Connector body is 35% glass reinforced plastic rated to 220 °C
